| -Width: | 4.6 mm |
| -Sensing Distance: | 5 mm |
| -Pd - Power Dissipation: | 100 mW |
| -Mounting Style: | Through Hole |
| -Maximum Collector Current: | 20 mA |
| -Fall Time: | 30 us |
| -If - Forward Current: | 30 mA |
| -Output Type: | Phototransistor |

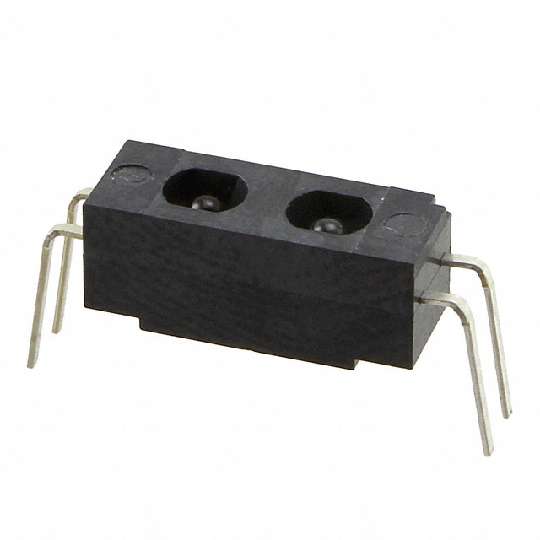

| -Series: | EE-SY110 |
| -Brand: | Omron Electronics |
| -RoHS: | Details |
| -Collector- Emitter Voltage VCEO Max: | 30 V |
| -Wavelength: | 940 nm |
| -Sensing Method: | Reflective |
| -Minimum Operating Temperature: | - 40 C |
| -Height: | 4.8 mm |
| -Vf - Forward Voltage: | 1.2 V |
| -Number of Channels: | 1 |
| -Length: | 12 mm |
| -Manufacturer: | Omron |
| -Vr - Reverse Voltage: | 4 V |
| -Factory Pack Quantity: | 1000 |
| -Part # Aliases: | 1348969 367535 |
| -Product Category: | Optical Switches, Reflective, Phototransistor Output |
| -Rise Time: | 30 us |
| -Maximum Operating Temperature: | + 85 C |
