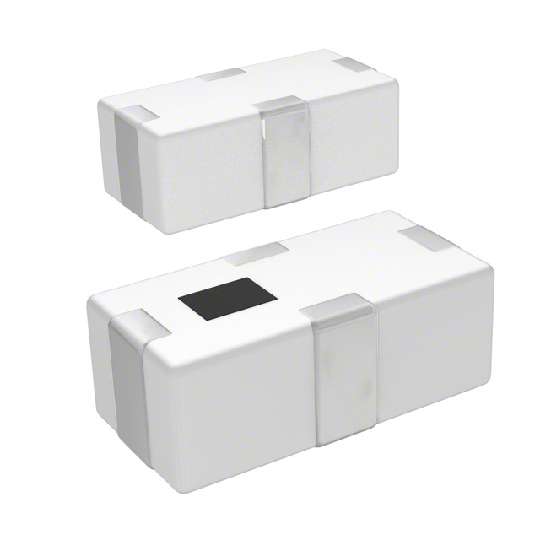

DPX165950DT-8118A1

DIPLEXER 2.4/5GHZ WLAN

Manufacturer TDK Corporation MPN DPX165950DT-8118A1 SPQ 4000 ECCN -- Schedule B -- RoHS -- Datasheet --

Quote

Demand quantity		Target price
Contact number		name
company		email

Product parameter

-Part Status	Active
-Category	RF/IF and RFID
-Return Loss (Low Band / High Band)	9.5dB / 9.5dB
-Series	DPX
-Mounting Type	Surface Mount
-Frequency Bands (Low / High)	2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz
-Manufacturer	TDK Corporation
-Package / Case	0603 (1608 Metric)
-High Band Attenuation (min / max dB)	20.00dB / 27.00dB
-Family	RF Diplexers
-Low Band Attenuation (min / max dB)	20.00dB / 23.00dB
-Packaging	Tape & Reel (TR)
