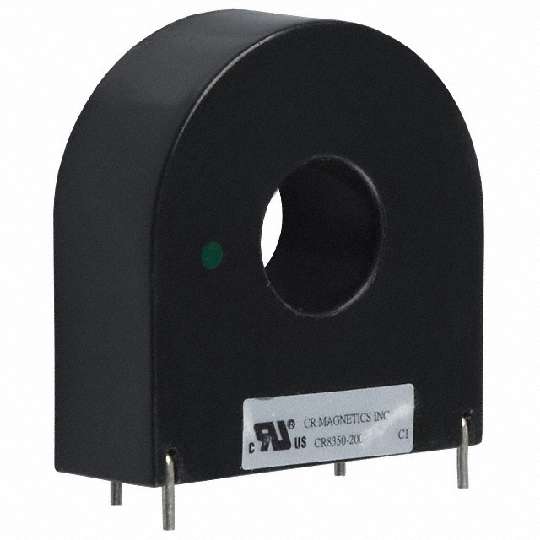

CR8350-2000

CURR SENSE XFMR 200A T/H,200A Current Sense Transformer 20Hz ~ 1kHz 73Ohm Through Hole

Manufacturer CR Magnetics, Inc. MPN CR8350-2000 SPQ 1 ECCN -- Schedule B -- RoHS -- Datasheet --

Quote

Demand quantity		Target price
Contact number		name
company		email

Product parameter

-Termination Style	PC Pin
-Part Status	Active
-Manufacturer	CR Magnetics Inc.
-Series	CR8300
-Mounting Type	Through Hole
-Turns Ratio - Primary:Secondary	1 : 2000
-Current Rating	200A
-Size / Dimension	37.50mm L x 14.00mm W
-Category	Transformers
-Height - Seated (Max)	39.00mm
-Family	Current Sense Transformers
-Frequency	20Hz ~ 1kHz
-DC Resistance (DCR)	73 Ohm
