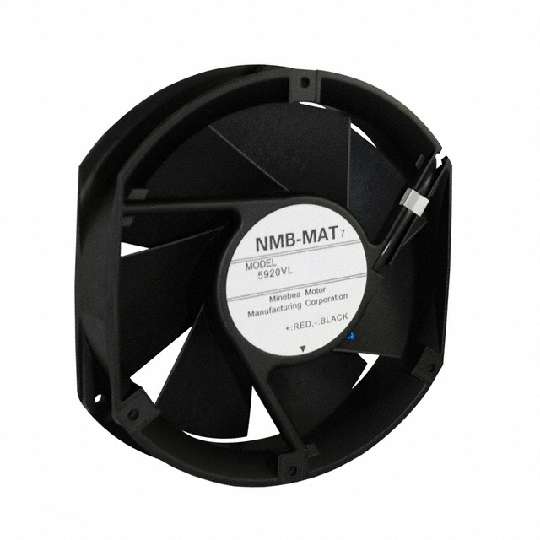

| -Product Photos | 5920VL |
| -Material - Frame | Aluminum |
| -Weight | 1.8 lbs (816.5g) |
| -Featured Product | VL Series Fans |
| -Bearing Type | Ball |
| -Other Names | 15050VA-48P-EV-CY 5920VL07WB69D50 P14735 |
| -Static Pressure | 0.846 in H2O (210.7 Pa) |
| -Standard Package | 10 |
| -Voltage Range | 36 ~ 56VDC |
| -Category | Fans, Thermal Management |
| -Noise | 63 dB(A) |
| -Family | DC Fans |
| -RoHS Information | 5920VL-07W-B69-D50 Material |
| -Current Rating | 0.520A |
| -Size / Dimension | Rectangular/Rounded - 172mm L x 150mm H x 50.8mm W |
| -Air Flow | 283.1 CFM (8.02m³/min) |
| -Life Expectancy | 100000 hrs @ 25°C |
| -Power (Watts) | 25.0W |
| -Fan Type | Tubeaxial |
| -Termination | 3 Wire Leads |
| -Material - Blade | Plastic |
| -Features | Speed Sensor (Tach) |
| -Datasheets | 5920VL(150x172x50) |
| -Voltage - Rated | 48VDC |
| -Series | 5920VL |
| -RPM | 3750 RPM |
| -Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
