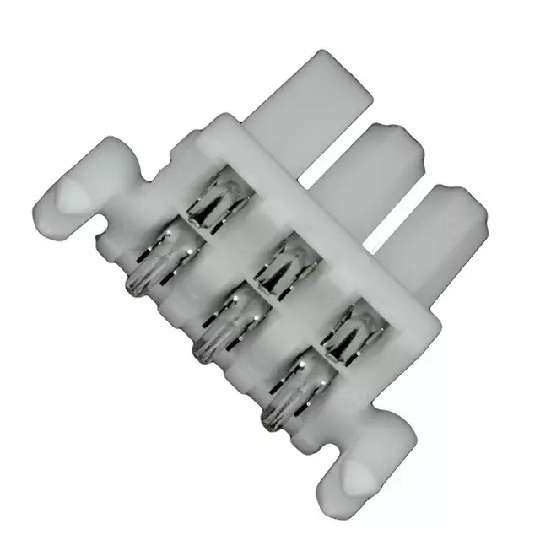

| -Product Photos |
15-24-7061 |
| -Number of Positions Loaded |
All |
| -Video File |
Mini-Fit BMI Molex - Product of the Quarter - Mini-Fit® |
| -Mounting Type |
Through Hole |
| -Contact Finish Thickness |
100µin (2.54µm) |
| -Row Spacing |
0.165" (4.20mm) |
| -Contact Type |
Female Socket |
| -Standard Package |
2,400 |
| -Features |
Board Lock |
| -Packaging |
Tray |
| -Category |
Connectors, Interconnects |
| -Series |
Mini-Fit® BMI™ 42385 |
| -Family |
Rectangular Connectors - Headers, Receptacles, Female Sockets |
| -Connector Type |
Receptacle |
| -Number of Rows |
2 |
| -Contact Finish |
Tin |
| -Product Training Modules |
Power Connectors |
| -Featured Product |
Mini-Fit® Blind Mate Interface (BMI) Connectors |
| -Mating Products |
WM18461-ND - CONN HEADER 6POS STR W/CLIP TIN WM18458-ND - CONN HEADER 6POS R/A W/CLIP TIN WM17701-ND - CONN PLUG 6POS W/PANEL MNT EARS WM17801-ND - CONN HEADER 6POS 4.2MM R/A TIN WM17714-ND - CONN PLUG 6POS W/PANEL MNT EARS WM17723-ND - CONN HEADER 6POS |
| -Other Names |
0015-24-7061 0015-24-7061-E 0015247061-E 15-24-7061 15-24-7061-E 15247061 15247061-E 42385-06B1 WM17736 |
| -Termination |
Solder |
| -Catalog Drawings |
15-24 Series Female Footprint 15-24 Series Female Side 15-24 Series Female Front |
| -Color |
Natural |
| -PCN Design/Specification |
Mini-FIt,KK Plating 01/Nov/2011 |
| -Datasheets |
15-24-7xx(0-4) |
| -Online Catalog |
Mini-Fit® BMI 42385 Series |
| -Number of Positions |
6 |
| -RoHS Information |
15-24-7061 Cert of Compliance |
| -3D Model |
15-24-7061.stp |
| -Pitch |
0.165" (4.20mm) |
