| -Release Force | 50gf |
| -Ingress Protection | IP40 |
| -Voltage Rating - DC | 30V |
| -Other Related Documents | How to Read Date Codes |
| -Mounting Type | Chassis Mount |
| -Circuit | SPDT |
| -Differential Travel | 0.016" (0.4mm) |
| -Standard Package | 100 |
| -Operating Force, Torque | 200gf |

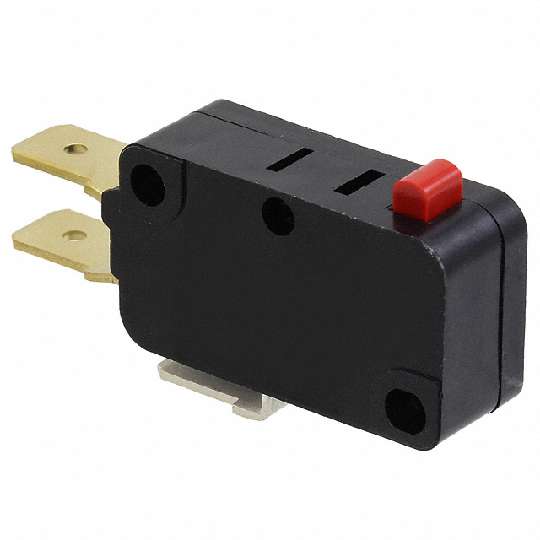

| -Datasheets | V Series, Snap Action Switch |
| -Mechanical Life | 50,000,000 Cycles |
| -Family | Snap Action, Limit Switches |
| -Overtravel | 0.040" (1.0mm) |
| -Switch Function | On-Mom |
| -Termination Style | Quick Connect - 0.250" (6.3mm) |
| -Electrical Life | 100,000 Cycles |
| -Operating Position | 0.579" (14.7mm) |
| -Other Names | V161C5R |
| -Actuator Type | Round (Pin Plunger) |
| -Pretravel | 0.047" (1.2mm) |
| -Voltage Rating - AC | 250V |
| -Packaging | Bulk |
| -Category | Switches |
| -Series | V |
| -Operating Temperature | -25°C ~ 80°C |
| -Current Rating | 16A (AC), 10A (DC) |
