| -Contact Finish |
Gold |
| -Product Training Modules |
Board-to-Board Connectors |
| -Mating Products |
SAM1204-27-ND - CONN RCPT .100" 54POS DUAL TIN SAM1084-27-ND - CONN RCPT 54POS .100" DUAL GOLD SAM1006-27-ND - CONN RCPT 54POS .100" DUAL HORZ SAM1007-27-ND - CONN RCPT 54POS .100" DUAL VERT SAM1008-27-ND - CONN RCPT 54POS .100" DUAL VERT SAM1086-27-ND - |
| -Other Names |
SAM1060-27 |
| -Termination |
Solder |
| -Catalog Drawings |
TSW Series Dual |
| -Standard Package |
1 |
| -Packaging |
Bulk |
| -Category |
Connectors, Interconnects |
| -Series |
TSW |
| -Family |

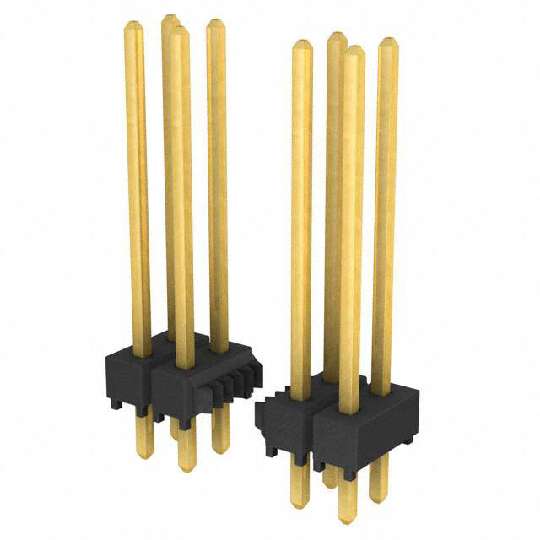

Rectangular Connectors - Headers, Male Pins |
| -Connector Type |
Header, Unshrouded |
| -Pitch |
0.100" (2.54mm) |
| -Number of Positions Loaded |
All |
| -Mounting Type |
Through Hole |
| -Contact Finish Thickness |
10µin (0.25µm) |
| -Row Spacing |
0.100" (2.54mm) |
| -Contact Type |
Male Pin |
| -Alternate Length |
SAM1060-38-ND - CONN HEADER 76POS .100" DL GOLD SAM1060-39-ND - CONN HEADER 78POS .100" DL GOLD SAM1060-40-ND - CONN HEADER 80POS .100" DL GOLD SAM1060-41-ND - CONN HEADER 82POS .100" DL GOLD SAM1060-42-ND - CONN HEADER 84POS .100" DL GOLD SAM1060-43-ND |
| -Color |
Black |
| -Datasheets |
HTSW, TSW Series Spec Sheet TSW Series Drawing TSW Series Footprint |
| -Online Catalog |
TSW Series |
| -Number of Positions |
54 |
| -Contact Mating Length |
0.620" (15.75mm) |
| -Number of Rows |
2 |
