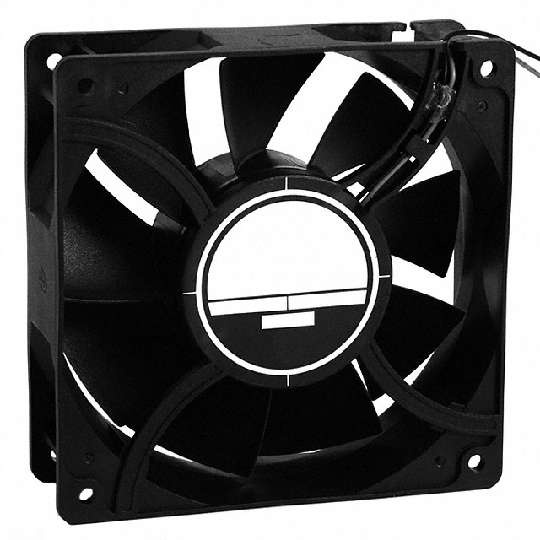

| -Termination | 3 Wire Leads |
| -Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| -Features | Speed Sensor (Tach) |
| -Part Status | Active |
| -Manufacturer | Orion Fans |
| -Air Flow | 200.0 CFM (5.66m³/min) |
| -Series | OD1238 |
| -Power (Watts) | 23.0W |
| -RPM | 4300 RPM |
| -Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| -Fan Type | Tubeaxial |
| -Static Pressure | 0.640 in H2O (159.4 Pa) |
| -Approvals | TUV, UR |
| -Size / Dimension | Square - 120mm L x 120mm H |
| -Category | Fans, Thermal Management |
| -Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| -Voltage - Rated | 12VDC |
| -Noise | 61 dB |
| -Family | DC Fans |
| -Width | 38.5mm |
| -Bearing Type | Ball |
| -Current Rating | 1.95A |
