| -Vce Saturation (Max) @ Ib, Ic |
300mV @ 1mA, 10mA |
| -Resistor - Base (R1) (Ohms) |
10k |
| -Power - Max |
200mW |
| -Supplier Device Package |
SOT-523F |
| -Part Status |
Obsolete |
| -Manufacturer |
Fairchild Semiconductor |
| -Family |
Transistors - Bipolar (BJT) - Single, Pre-Biased |
| -Current - Collector Cutoff (Max) |
100nA (ICBO) |
| -Packaging |
Tape & Reel (TR) |
| -Frequency - Transition |
250MHz |

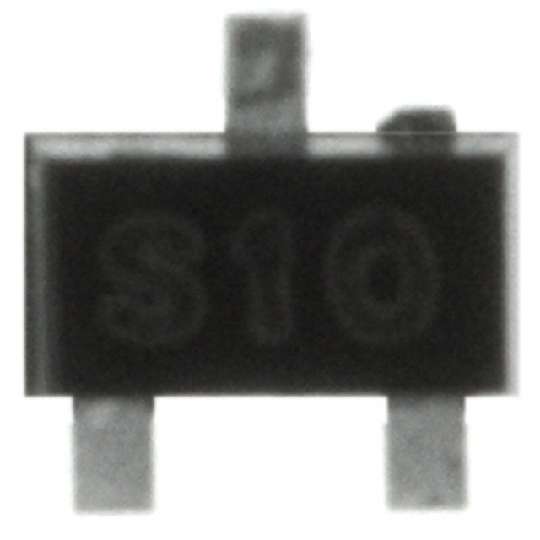

| -Package / Case |
SC-89, SOT-490 |
| -Transistor Type |
NPN - Pre-Biased |
| -Current - Collector (Ic) (Max) |
100mA |
| -Category |
Discrete Semiconductor Products |
| -Voltage - Collector Emitter Breakdown (Max) |
40V |
| -Mounting Type |
Surface Mount |
| -DC Current Gain (hFE) (Min) @ Ic, Vce |
100 @ 1mA, 5V |
