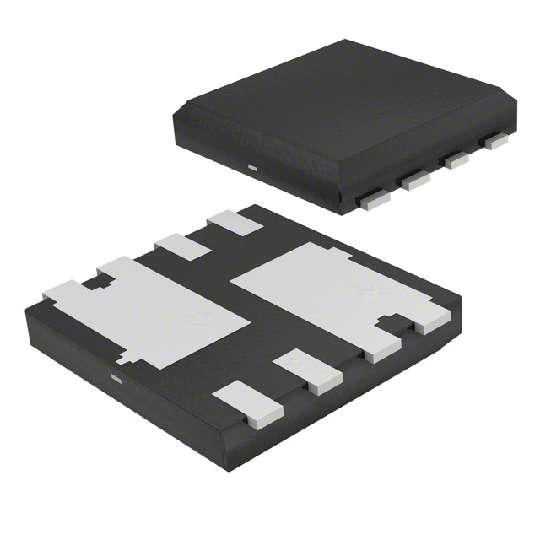

AON7826

MOSFET 2N-CH 20V 9A 8DFN

Manufacturer Alpha and Omega Semiconductor, Inc. MPN AON7826 SPQ 1 ECCN -- Schedule B -- RoHS -- Datasheet --

Quote

Demand quantity		Target price
Contact number		name
company		email

Product parameter

-FET Feature	Logic Level Gate
-Package / Case	8-PowerSMD, Flat Leads
-Drain to Source Voltage (Vdss)	20V
-Current - Continuous Drain (Id) @ 25°C	9A
-Part Status	Active
-Manufacturer	Alpha & Omega Semiconductor Inc.
-Family	Transistors - FETs, MOSFETs - Arrays
-Mounting Type	Surface Mount
-Input Capacitance (Ciss) @ Vds	630pF @ 10V
-Rds On (Max) @ Id, Vgs	23 mOhm @ 9A, 10V
-Power - Max	3.1W
-Supplier Device Package	8-DFN (3x3)
-Gate Charge (Qg) @ Vgs	15nC @ 10V
-Category	Discrete Semiconductor Products
-FET Type	2 N-Channel (Dual)
-Vgs(th) (Max) @ Id	1.1V @ 250µA
-Operating Temperature	-55°C ~ 150°C (TJ)
-Packaging	Tape & Reel (TR)
