| -FET Feature |
Logic Level Gate |

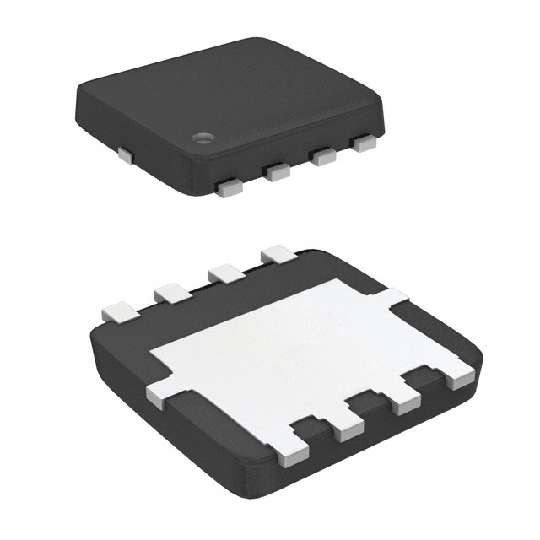

| -Package / Case |
8-PowerSMD, Flat Leads |
| -Drain to Source Voltage (Vdss) |
30V |
| -Current - Continuous Drain (Id) @ 25°C |
9A, 18.5A |
| -Part Status |
Active |
| -Manufacturer |
Alpha & Omega Semiconductor Inc. |
| -Family |
Transistors - FETs, MOSFETs - Arrays |
| -Mounting Type |
Surface Mount |
| -Input Capacitance (Ciss) @ Vds |
170pF @ 15V |
| -Rds On (Max) @ Id, Vgs |
50 mOhm @ 4A, 10V |
| -Power - Max |
1.5W |
| -Supplier Device Package |
8-DFN (3x3) |
| -Gate Charge (Qg) @ Vgs |
10nC @ 10V |
| -Category |
Discrete Semiconductor Products |
| -FET Type |
N and P-Channel, Common Drain |
| -Vgs(th) (Max) @ Id |
2.5V @ 250µA |
| -Operating Temperature |
-55°C ~ 150°C (TJ) |
| -Packaging |
Tape & Reel (TR) |
