| -CRI (Color Rendering Index) |
70 (Typ) |
| -Flux @ 25°C, Current - Test |
700 lm (Typ) |
| -For Use With |
BER297-ND - ARRAY LED IMS SEOUL SEMI ZPWR BER285-ND - BOARD LED IMS SEOUL SEMI P7 803805-ND - STRIP LED IMS SEOUL SEMI P7 |
| -Catalog Drawings |

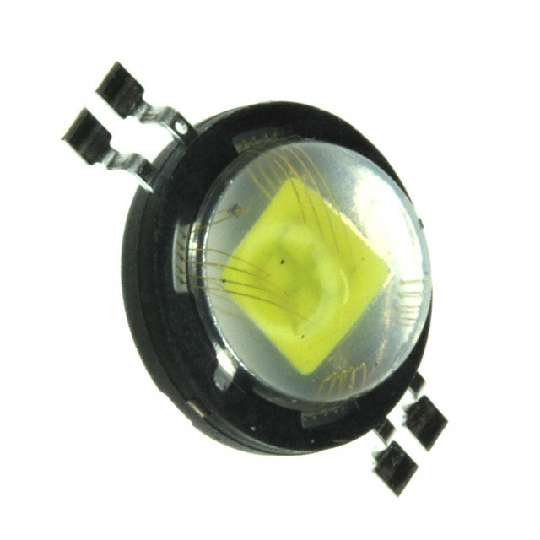

High Power LED Side 1 High Power LED Side 2 |
| -CCT (K) |
6300K |
| -Packaging |
Digi-Reel® |
| -Current - Test |
2.8A |
| -Current - Max |
2.8A |
| -Lumens/Watt @ Current - Test |
69 lm/W |
| -Package / Case |
12.00mm Dia x 6.54mm H |
| -Viewing Angle |
130° |
| -Thermal Resistance of Package |
3°C/W |
| -Standard Package |
1 |
| -Color |
White, Cool |
| -Voltage - Forward (Vf) (Typ) |
3.6V |
| -Series |
Z Power P7 |
| -Family |
LED Lighting - White |
