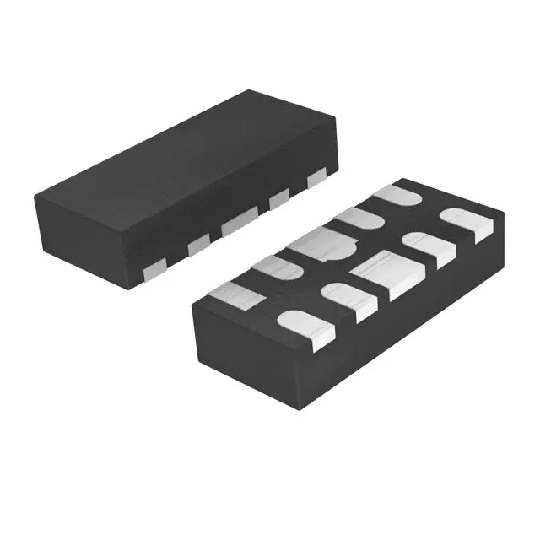

TPD4E05U06DQAR

TVS DIODE 5.5V 14V 10SON

Manufacturer Texas Instruments MPN TPD4E05U06DQAR SPQ 1 ECCN -- Schedule B -- RoHS RoHS Compliant Datasheet --

SP1027 Dollar $0.67689 RMB ￥5.62201 Stock type SP1027 Stock num 500 Stepped num price 1+ $0.67689 10+ $0.31729 25+ $0.20879 100+ $0.19608 250+ $0.18833 500+ $0.1192

Quote

Demand quantity		Target price
Contact number		name
company		email

Product parameter

-Power - Peak Pulse	40W
-Type	Steering (Rail to Rail)
-Power Line Protection	Yes
-Bidirectional Channels	4
-Current - Peak Pulse (10/1000µs)	5A (8/20µs)
-Family	TVS - Diodes
-Applications	General Purpose
-Voltage - Reverse Standoff (Typ)	5.5V (Max)
-RoHS	Lead free / RoHS Compliant
-Package / Case	10-UFDFN
-Supplier Device Package	10-SON (2.5x1)
-Voltage - Clamping (Max) @ Ipp	14V
-Online Catalog	TPD4 Series
-Voltage - Breakdown (Min)	6.5V
-Mounting Type	Surface Mount
-Operating Temperature	-40°C ~ 125°C (TA)
-Packaging	Digi-Reel®
