| -Vce Saturation (Max) @ Ib, Ic |
250mV @ 300µA, 10mA |
| -Resistor - Base (R1) (Ohms) |
10k, 22k |
| -Power - Max |
125mW |
| -Resistor - Emitter Base (R2) (Ohms) |
10k, 47k |
| -Catalog Drawings |
XN0A,XP033,UP033 Series Circuit SS-Mini 5 Pin Package Top |
| -Current - Collector (Ic) (Max) |
100mA |
| -Voltage - Collector Emitter Breakdown (Max) |
50V |
| -Mounting Type |
Surface Mount |
| -DC Current Gain (hFE) (Min) @ Ic, Vce |
35 @ 5mA, 10V / 80 @ 5mA, 10V |
| -Frequency - Transition |
150MHz, 80MHz |

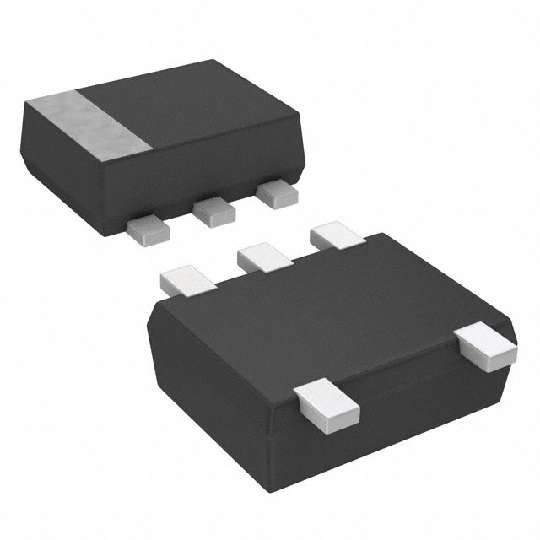

| -Package / Case |
SOT-665 |
| -Transistor Type |
1 NPN, 1 PNP - Pre-Biased (Dual) |
| -Supplier Device Package |
SSMini5-F2 |
| -Standard Package |
1 |
| -Packaging |
Cut Tape (CT) |
| -Family |
Transistors (BJT) - Arrays, Pre-Biased |
| -Current - Collector Cutoff (Max) |
500nA |
