| -FET Feature | Logic Level Gate |

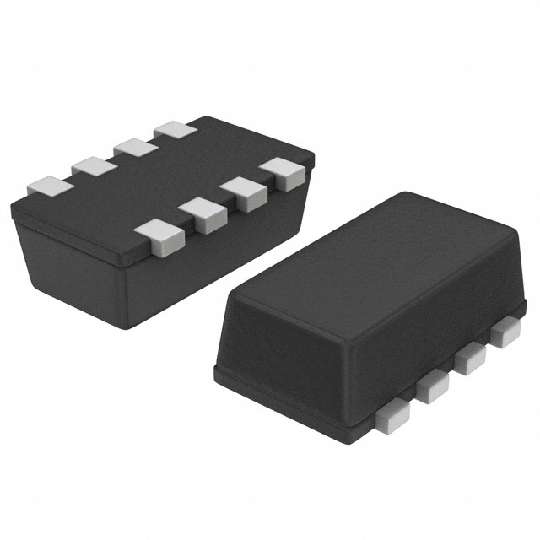

| -Package / Case | 8-SMD, Flat Lead |
| -Drain to Source Voltage (Vdss) | 20V |
| -Current - Continuous Drain (Id) @ 25°C | 3A |
| -Standard Package | 1 |
| -Packaging | Cut Tape (CT) |
| -Family | FETs - Arrays |
| -Mounting Type | Surface Mount |
| -Rds On (Max) @ Id, Vgs | 59 mOhm @ 1.5A, 4.5V |
| -Power - Max | 330mW |
| -Supplier Device Package | VS-8 (2.9x1.9) |
| -Catalog Drawings | TPC8xxx Series Side TPC8xxx Series Top |
| -Gate Charge (Qg) @ Vgs | 11nC @ 5V |
| -FET Type | 2 P-Channel (Dual) |
| -Vgs(th) (Max) @ Id | 1.2V @ 200µA |
| -Input Capacitance (Ciss) @ Vds | 800pF @ 10V |
