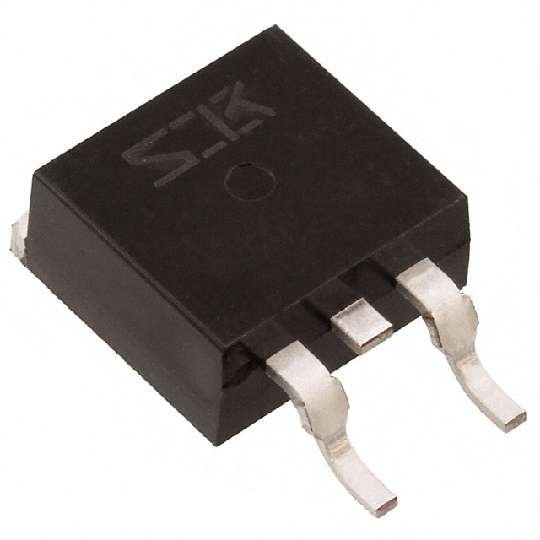

SKP253VR

MOSFET N-CH 250V 20A TO-263

Manufacturer Sanken Electric Co., Ltd. MPN SKP253VR SPQ 800 ECCN -- Schedule B -- RoHS -- Datasheet --

Quote

Demand quantity		Target price
Contact number		name
company		email

Product parameter

-FET Feature	Standard
-Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
-Drain to Source Voltage (Vdss)	250V
-Current - Continuous Drain (Id) @ 25°C	20A (Ta)
-Packaging	Tape & Reel (TR)
-Family	FETs - Single
-Mounting Type	Surface Mount
-Rds On (Max) @ Id, Vgs	95 mOhm @ 10A, 10V
-Power - Max	40W
-Supplier Device Package	TO-263
-Standard Package	800
-FET Type	MOSFET N-Channel, Metal Oxide
-Vgs(th) (Max) @ Id	4.5V @ 1mA
-Input Capacitance (Ciss) @ Vds	1600pF @ 25V
