| Demand quantity | Target price | ||
| Contact number | name | ||
| company | |||

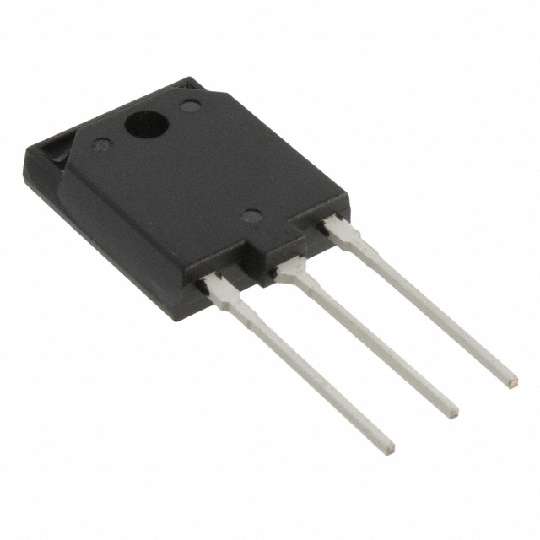

| -Package / Case | TO-3PFM, SC-93-3 |
| -Test Condition | 300V, 37A, 5 Ohm, 15V |
| -Supplier Device Package | TO-3PFM |
| -Td (on/off) @ 25°C | 50ns/135ns |
| -Packaging | Tube |
| -Gate Charge | 78nC |
| -Voltage - Collector Emitter Breakdown (Max) | 600V |
| -Mounting Type | Through Hole |
| -Switching Energy | 650µJ (on), 270µJ (off) |
| -Power - Max | 45W |
| -IGBT Type | Trench |
| -Standard Package | 1 |
| -Current - Collector (Ic) (Max) | 75A |
| -Reverse Recovery Time (trr) | 100ns |
| -Online Catalog | Standard IGBTs |
| -Family | IGBTs - Single |
| -Vce(on) (Max) @ Vge, Ic | 2.2V @ 15V, 37A |
| -Input Type | Standard |
