| -Vce Saturation (Max) @ Ib, Ic |
250mV @ 30mA, 1.5A |

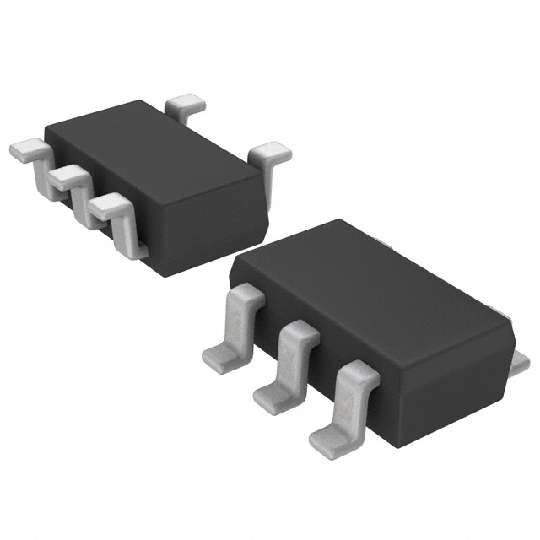

| -Package / Case |
SOT-23-5 Thin, TSOT-23-5 |
| -Transistor Type |
NPN, PNP (Emitter Coupled) |
| -Supplier Device Package |
TSMT5 |
| -PCN Design/Specification |
TSMT Package Updates 24/Dec/2014 |
| -Packaging |
Tape & Reel (TR) |
| -Family |
Transistors (BJT) - Arrays |
| -Current - Collector Cutoff (Max) |
100nA (ICBO) |
| -Operating Temperature |
150°C (TJ) |
| -Part Status |
Obsolete |
| -Frequency - Transition |
280MHz |
| -Power - Max |
500mW |
| -PCN Obsolescence/ EOL |
QSZ3TR Device 28/Jul/2014 |
| -Standard Package |
3,000 |
| -Current - Collector (Ic) (Max) |
3A |
| -Voltage - Collector Emitter Breakdown (Max) |
12V |
| -Mounting Type |
Surface Mount |
| -DC Current Gain (hFE) (Min) @ Ic, Vce |
270 @ 500mA, 2V |
| -Categories |
Discrete Semiconductor Products -> Transistors - Bipolar (BJT) - Arrays |
| -Moisture Sensitivity Level (MSL) |
1 (Unlimited) |
