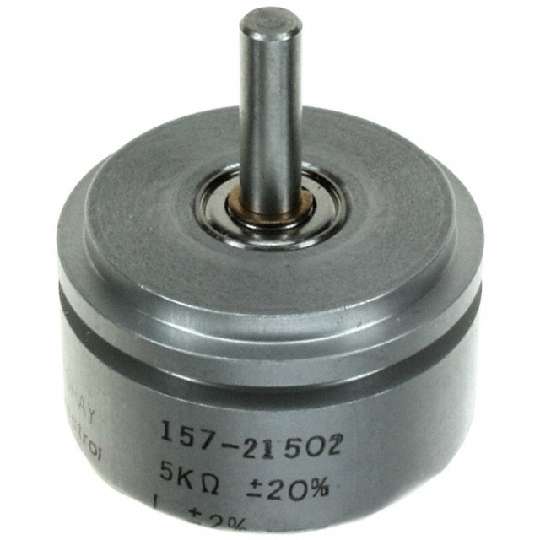

157S502MX

Vishay 精密电位计 157 系列, 3.17 mm 直径轴 5kΩ ±20% 1W ±600ppm/°C, 线性, 伺服安装

Manufacturer Vishay MPN 157S502MX SPQ 1 ECCN -- Schedule B -- RoHS RoHS Compliant Datasheet --

SP1034 Dollar $195.74532 RMB ￥1625.79169 Stock type SP1034 Stock num 559 Stepped num price 1+ $195.74532 SP1034 Dollar $195.74532 RMB ￥1625.79169 Stock type SP1034 Stock num 1269 Stepped num price 1+ $195.74532 SP1034 Dollar $195.62708 RMB ￥1624.80963 Stock type SP1034 Stock num 1269 Stepped num price 10+ $195.62708

Quote

Demand quantity		Target price
Contact number		name
company		email

Product parameter

-Actuator Type	Round Shaft
-Actuator Length	0.500" (12.70mm)
-Number of Turns	Single
-Termination Style	Solder Turret
-Adjustment Type	Top Adjustment
-Resistance (Ohms)	5k
-Family	Rotary Potentiometers - Linear
-Mounting Type	Panel Mount
-Actuator Diameter	0.125" (3.17mm)
-Packaging	Bulk
-Tolerance	±20%
-Temperature Coefficient	±600ppm/°C
-Catalog Drawings	157-2 Series Side
-Size - Body	Round - 0.875" Dia x 0.455" H (22.22mm x 11.56mm)
-Online Catalog	157 Series
-Series	157
-Power (Watts)	1W
-Resistive Material	Conductive Plastic
-Rotation	Continuous
-RoHS	Lead free / RoHS Compliant
