MRK112-CC

SWITCH ROTARY SP 12 POS PC MNT

Manufacturer NKK Switches MPN MRK112-CC SPQ 1 ECCN -- Schedule B -- RoHS -- Datasheet --

Quote

Demand quantity		Target price
Contact number		name
company		email

Product parameter

-Contact Finish	Gold
-Termination Style	PC Pin
-Circuit per Deck	SP12T
-Mounting Type	Panel Mount, Through Hole
-Number of Poles per Deck	1
-Actuator Length	15.80mm
-Voltage Rating - AC	28V
-Operating Force, Torque	0.005 ~ 0.02 N-m
-Index Stops	Adjustable
-Number of Positions	2 ~ 12
-Panel Cutout Dimensions	Circular - 6.35mm Dia
-3D Model	MRK112-CC
-Contact Timing	Non-Shorting (BBM)
-Number of Decks	1
-Voltage Rating - DC	28V
-Product Training Modules	Switch Basics 3D CAD Models
-Actuator Type	Knob
-Angle of Throw	30°

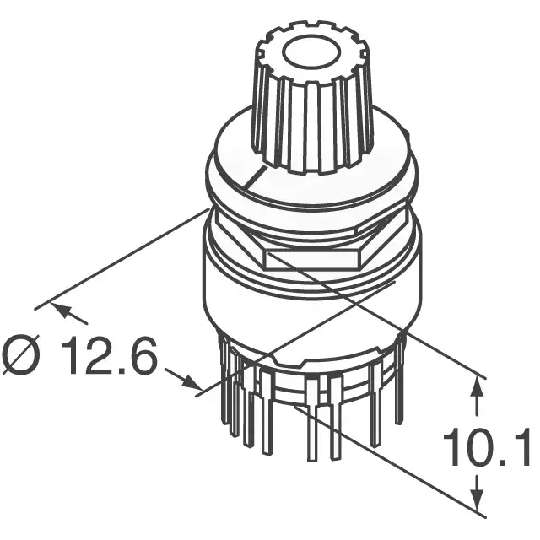

-Catalog Drawings	MRK Series
-Features	Process Sealed
-Contact Material	Phosphor Bronze
-Series	MR
-Family	Rotary Switches
-RoHS Information	Series, Cert of Compliance
-Depth Behind Panel	10.10mm
-Current Rating	0.4VA (AC/DC)
