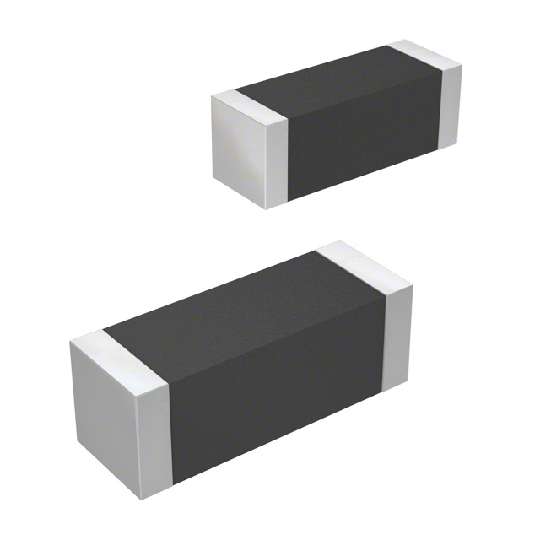

MH4516-600Y

BEAD FERRITE 60 OHM 6.0A 1806

Manufacturer Bourns, Inc. MPN MH4516-600Y SPQ 1 ECCN -- Schedule B -- RoHS -- Datasheet --

SP1034 Dollar $0.11213 RMB ￥0.93131 Stock type SP1034 Stock num 1340 Stepped num price 100+ $0.11213 200+ $0.10082 500+ $0.09898 1000+ $0.097 SP1034 Dollar $0.10379 RMB ￥0.86204 Stock type SP1034 Stock num 1340 Stepped num price 2000+ $0.10379 SP1034 Dollar $0.11793 RMB ￥0.97949 Stock type SP1034 Stock num 1340 Stepped num price 10+ $0.11793 100+ $0.11213 200+ $0.10082 500+ $0.09898 1000+ $0.097

Quote

Demand quantity		Target price
Contact number		name
company		email

Product parameter

-Package / Case	1806 (4516 Metric)
-Impedance @ Frequency	60 Ohm @ 100MHz
-Packaging	Cut Tape (CT)
-Family	Ferrite Beads and Chips
-Mounting Type	Surface Mount
-Filter Type	Differential Mode - Single
-Current Rating	6A
-Standard Package	1
-Size / Dimension	0.177" L x 0.063" W (4.50mm x 1.60mm)
-Series	MH
-Height (Max)	0.071" (1.80mm)
-RoHS Information	MH4516 Series Material Declaration
-DC Resistance (DCR)	10 mOhm Max
