| -FET Feature |
Logic Level Gate |

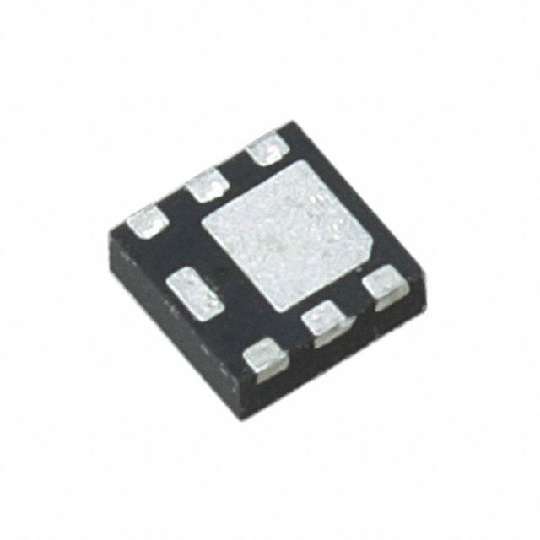

| -Package / Case |
6-UDFN Exposed Pad |
| -Drain to Source Voltage (Vdss) |
30V |
| -Current - Continuous Drain (Id) @ 25°C |
4.7A (Ta) |
| -PCN Design/Specification |
Copper Bond Wire Material 15/Jun/2014 Copper Bond Wire 11/Aug/2014 |
| -Family |
FETs - Single |
| -Vgs(th) (Max) @ Id |
2.5V @ 250µA |
| -Packaging |
Cut Tape (CT) |
| -Rds On (Max) @ Id, Vgs |
50 mOhm @ 4.7A, 10V |
| -Power - Max |
1.7W |
| -Supplier Device Package |
6-DFN2020MD (2x2) |
| -Gate Charge (Qg) @ Vgs |
26nC @ 10V |
| -FET Type |
MOSFET P-Channel, Metal Oxide |
| -Mounting Type |
Surface Mount |
| -Input Capacitance (Ciss) @ Vds |
860pF @ 15V |
| -RoHS |
Lead free / RoHS Compliant |
