| -Steps per Revolution | 2400 |
| -Mounting Hole Spacing | 1.880" (47.63mm) |
| -Step Angle | 0.15° |
| -Diameter - Shaft | 0.188" (4.77mm) |
| -Features | Round Shaft |
| -Part Status | Obsolete |
| -Manufacturer | Portescap |
| -Voltage - Rated | 5VDC |
| -Coil Resistance | 9.1 Ohms |
| -Length - Shaft and Bearing | 0.500" (12.70mm) |
| -Torque - Holding (oz-in / mNm) | 11.9 / 84 |

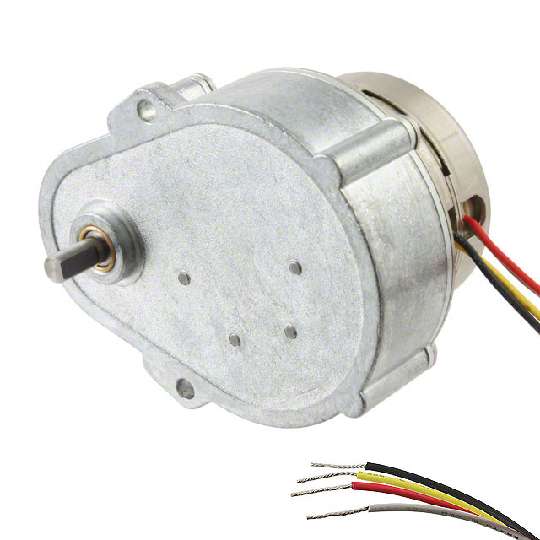

| -Type | Permanent Magnet Gear Motor |
| -Rotor Inertia | 12.5gcm² |
| -Termination Style | Wire Leads |
| -Coil Type | Bipolar |
| -Size / Dimension | Round - 1.650" Dia (42.00mm) |
| -Category | Motors, Solenoids, Driver Boards/Modules |
| -Weight | 0.688 lb (312.07g) |
| -Series | 42M-Z |
| -Family | Stepper Motors |
| -Operating Temperature | -20°C ~ 70°C |
| -Current Rating | 0.55A |
