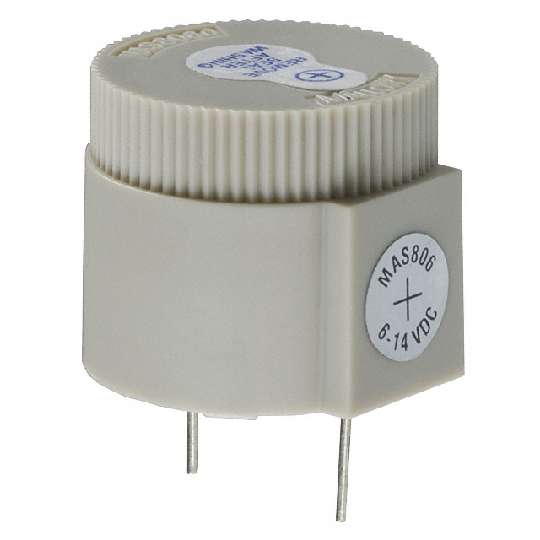

| -Size / Dimension | Circular - 26.30mm Dia x 21.90mm H |
| -Operating Mode | Continuous |
| -Frequency | 2.8kHz |
| -Input Type | DC |
| -Termination | PC Pins |
| -Catalog Drawings | MAS(800,806)SQ Top MAS(800,806)SQ Side |
| -Packaging | Bulk |
| -Voltage Range | 6 ~ 14V |
| -Series | MAS |
| -Operating Temperature | -20°C ~ 90°C |
| -ECCN | EAR99 |
| -Washable | Yes |
| -Mounting Type | Through Hole |
| -Current - Supply | 50mA |
| -Driver Circuitry | Indicator, Internally Driven |
| -Sound Pressure Level | 103dB @ 12V, 10cm |
| -Standard Package | 1 |
| -Sound File | 2800 Hz Continuous |
| -Voltage - Rated | 12VDC |
| -Family | Buzzers |
| -Technology | Piezo |
