| -Operating Temperature - Junction |
125°C (Max) |
| -Capacitance @ Vr, F |
40pF @ 10V, 1MHz |
| -Supplier Device Package |
Smini2-F2 |
| -Standard Package |
3,000 |
| -Diode Type |
Schottky |
| -Reverse Recovery Time (trr) |
13ns |
| -Family |
Diodes, Rectifiers - Single |
| -Voltage - DC Reverse (Vr) (Max) |
30V |
| -Current - Average Rectified (Io) |
1A |

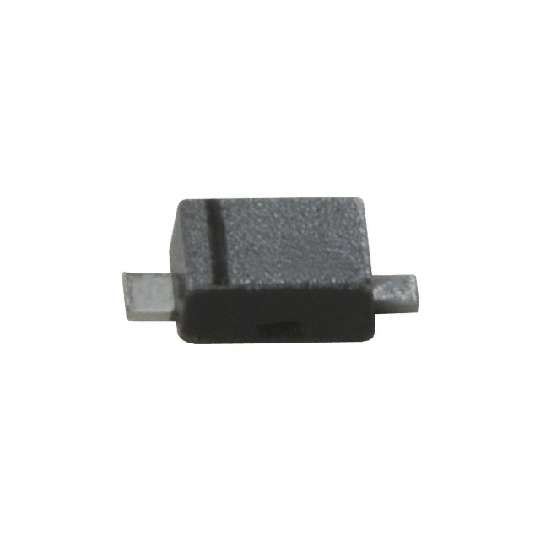

| -Package / Case |
2-SMD, Flat Lead |
| -Catalog Drawings |
S Mini Type 2 Pin Top |
| -Packaging |
Tape & Reel (TR) |
| -Speed |
Fast Recovery =< 500ns, > 200mA (Io) |
| -Current - Reverse Leakage @ Vr |
100µA @ 30V |
| -Mounting Type |
Surface Mount |
| -Voltage - Forward (Vf) (Max) @ If |
420mV @ 1A |
