LWK-06-W250B-350

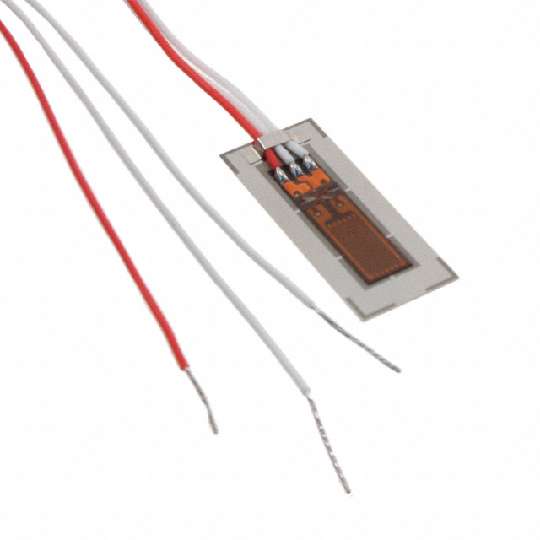

STRAIN GAUGE 350 OHM LINEAR WELD

制造商 Micro-Measurements/Vishay Precision Group 制造商零件编号 LWK-06-W250B-350 标准包装 5 ECCN -- Schedule B -- RoHS -- 规格说明书 --

询价

需求数量		目标价格
联系电话		姓名
公司		邮箱

产品参数

-Width - Overall Pattern	0.170" (4.30mm)
-Standard Package	5
-Strain Range	±5000µin/in (±5000µm/m)
-Length - Overall	0.88" (22.4mm)
-Resistance (Ohms)	350
-Series	LWK
-Pattern Type	Linear Weldable
-Operating Temperature	-320 ~ 500°F (-195 ~ 260°C)
-Width - Overall	0.32" (8.1mm)
-Length - Overall Pattern	0.620" (15.70mm)
-Resistance Tolerance	±0.4%
-Online Catalog	LWK
-Width - Active	0.125" (3.18mm)
-Family	Strain Gages
-Length - Active	0.250" (6.35mm)
