| -Maximum Collector Emitter Voltage: | 35 V |
| -Packaging: | Reel |
| -Isolation Voltage: | 5000 Vrms |
| -Pd - Power Dissipation: | 200 mW |

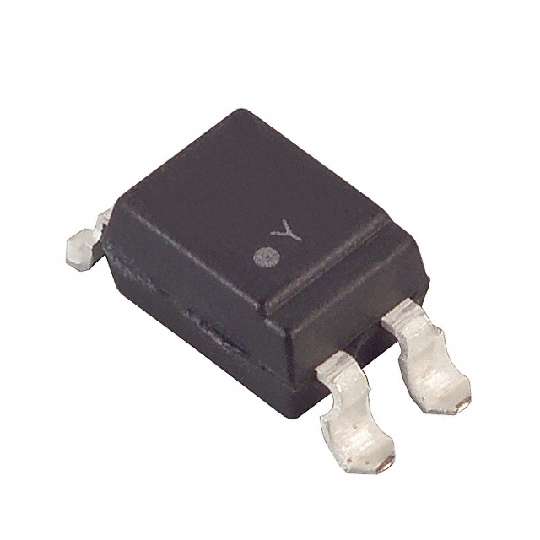

| -Package / Case: | PDIP-4 Gull Wing |
| -Configuration: | 1 Channel |
| -Maximum Collector Current: | 80 mA |
| -Fall Time: | 250 us |
| -If - Forward Current: | 50 mA |
| -Output Type: | Photodarlington |
| -Brand: | Lite-On |
| -Product Category: | Transistor Output Optocouplers |
| -Maximum Operating Temperature: | + 100 C |
| -Width: | 6.5 mm |
| -Maximum Collector Emitter Saturation Voltage: | 1 V |
| -Minimum Operating Temperature: | - 30 C |
| -Current Transfer Ratio: | 7500 % |
| -Height: | 3.5 mm |
| -Vf - Forward Voltage: | 1.4 V |
| -Number of Channels: | 1 Channel |
| -Length: | 4.6 mm |
| -Manufacturer: | Lite-On |
| -Factory Pack Quantity: | 1000 |
| -RoHS: | Details |
| -Rise Time: | 300 us |
