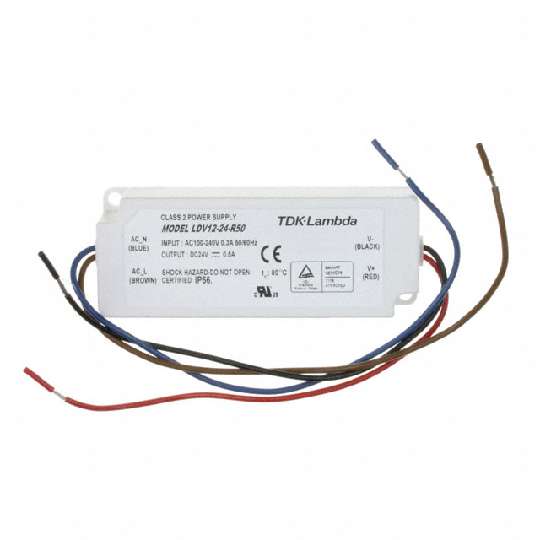

LDV12-24-R50

LED SUPPLY CV AC/DC 24V 500MA

Manufacturer TDK Corporation MPN LDV12-24-R50 SPQ 20 ECCN -- Schedule B -- RoHS -- Datasheet --

Quote

Demand quantity		Target price
Contact number		name
company		email

Product parameter

-Voltage - Isolation	3kV (3000V)
-Type	Constant Voltage
-Topology	AC DC Converter
-Standard Package	20
-Voltage - Output	24V
-Features	OCP, OVP
-Efficiency	82%
-Voltage - Input (Max)	264VAC
-Power (Watts)	12W
-Voltage - Input (Min)	90VAC
-Operating Temperature	-10°C ~ 60°C
-Number of Outputs	1
-Ratings	IP66
-Current - Output (Max)	500mA
-Termination Style	Wire Leads
-Approvals	CE, IEC, UL
-Size / Dimension	3.45" L x 1.36" W x 0.83" H (90.0mm x 34.5mm x 21.0mm)
-Weight	0.186 lb (84.37g)
-Series	LD12
-Family	LED Supplies
-Mounting Type	Chassis Mount
