| -Package / Case |
2-SMD, Boomerang |
| -PCN Obsolescence/ EOL |
Multiple Devices 01/Feb/2011 |

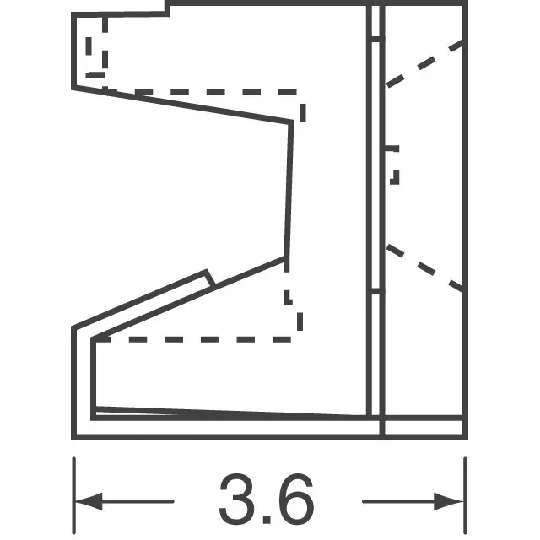

| -Catalog Drawings |
SIDELED® Side SIDELED® Front |
| -Color |
Amber |
| -Packaging |
Digi-Reel® |
| -Lens Color |
Colorless |
| -Voltage - Forward (Vf) (Typ) |
2V |
| -Series |
SIDELED |
| -Family |
LED Indication - Discrete |
| -Mounting Type |
Surface Mount, Right Angle |
| -Millicandela Rating |
1850mcd |
| -Viewing Angle |
120° |
| -Supplier Device Package |
SMD |
| -Standard Package |
1 |
| -Size / Dimension |
4.00mm L x 3.60mm W |
| -Lens Style/Size |
Round with Flat Top, 2.40mm |
| -Wavelength - Dominant |
617nm |
| -Current - Test |
30mA |
| -Wavelength - Peak |
624nm |
| -Height (Max) |
4.00mm |
| -Lens Transparency |
Clear |
