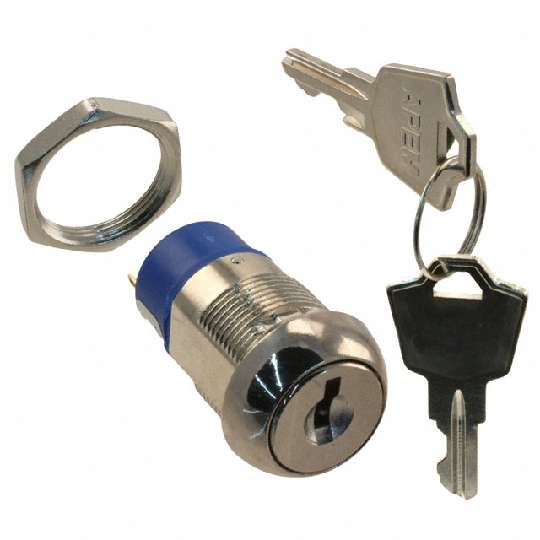

JD7509B

SWITCHLOCK DP 3POS SLD LUG 4A

Manufacturer Apem Inc. MPN JD7509B SPQ 25 ECCN -- Schedule B -- RoHS -- Datasheet --

Quote

Demand quantity		Target price
Contact number		name
company		email

Product parameter

-Circuit	DP3T
-Angle of Throw	45°
-Catalog Drawings	JD Series Panel Cutout
-Standard Package	25
-Series	JD
-Family	Keylock Switches
-Actuator Type	Flat Key
-Contact Rating @ Voltage	4A @ 125VAC
-Key Removable Positions	1 only
-Termination Style	Solder Lug
-Number of Positions	3
-Mounting Type	Panel Mount
