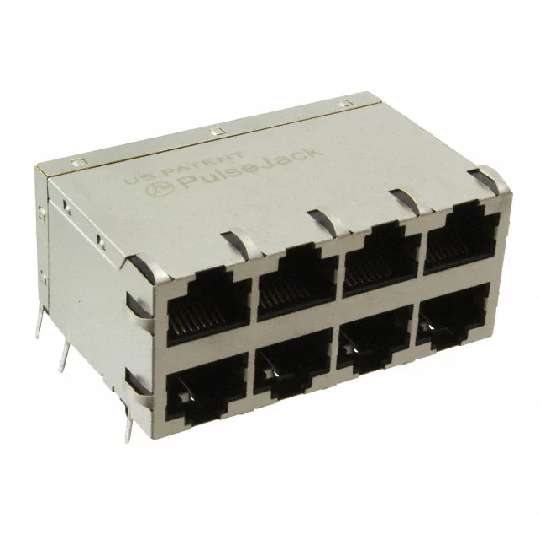

J0B-0384NL

CONN MAGJACK 8PORT 1000 BASE-T

Manufacturer Pulse Electronics Corporation MPN J0B-0384NL SPQ 15 ECCN -- Schedule B -- RoHS -- Datasheet --

Quote

Demand quantity		Target price
Contact number		name
company		email

Product parameter

-Contact Finish	Gold
-Number of Cores per Jack	8
-Applications	10/100/1000 Base-T, AutoMDIX, Power over Ethernet+ (PoE+)
-Shielding	Shielded, EMI Finger
-Height Above Board	1.005" (25.53mm)
-Number of Ports	8
-Orientation	90° Angle (Right)
-Features	Board Guide
-Contact Material	Phosphor Bronze
-Family	Modular Connectors - Jacks With Magnetics
-Operating Temperature	0°C ~ 70°C
-Number of Rows	2
-LED Color	Does Not Contain LED
-Housing Material	Thermoplastic
-Mounting Type	Through Hole
-Contact Finish Thickness	50µin (1.27µm)
-Termination	Solder
-Tab Direction	Up and Down
-Standard Package	15
-Packaging	Tray
-Series	PULSEJACK™ J0B
-Shield Material	Brass
-Connector Type	RJ45
