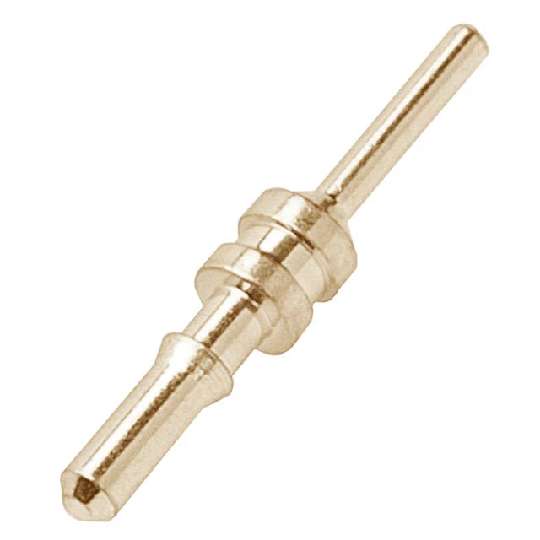

H2475-05

CONN PC PIN CIRC 0.020DIA GOLD

制造商 Harwin 制造商零件编号 H2475-05 标准包装 26000 ECCN -- Schedule B -- RoHS -- 规格说明书 H2475-05.pdf

询价

需求数量		目标价格
联系电话		姓名
公司		邮箱

产品参数

-Termination	Swage, Barbed
-Contact Finish	Gold
-Length Below Flange	0.118" (3.00mm)
-Standard Package	2,000
-Pin Size - Below Flange	0.030" (0.76mm) Dia
-Packaging	Bulk
-Insulation	Non-Insulated
-Family	Terminals - PC Pin, Single Post Connectors
-Terminal Style	Double End
-Mounting Hole Diameter	0.030" ~ 0.033" (0.76mm ~ 0.84mm)
-Board Thickness	0.063" (1.60mm)
-Terminal Type	PC Pin
-Pin Size - Above Flange	0.020" (0.51mm) Dia
-Flange Diameter	0.050" (1.27mm)
-Contact Material	Brass
-Length - Overall	0.287" (7.29mm)
-Mounting Type	Through Hole
