| -Switch Function | Off-Mom |
| -Actuator Height off PCB, from Pins | 5.00mm |
| -Operating Force | 130gf |
| -Actuator Material | Polybutylene Terephthalate (PBT) |

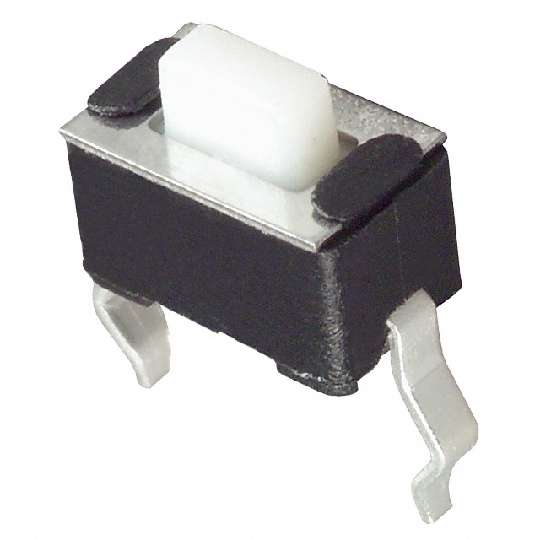

| -Actuator Type | Rectangular Button |
| -Standard Package | 1,000 |
| -Illumination | Non-Illuminated |
| -Mechanical Life | 20,000 Cycles |
| -Family | Tactile Switches |
| -RoHS Information | FSM Statement of Compliance RoHS 2 Statement |
| -Actuator Orientation | Top Actuated |
| -Termination Style | PC Pin |
| -Mounting Type | Through Hole |
| -Circuit | SPST-NO |
| -Contact Rating @ Voltage | 0.05A @ 12VDC |
| -Packaging | Bulk |
| -Switch Travel | 0.25mm |
| -Series | FSM, Alcoswitch |
| -Outline | 6.00mm x 3.50mm |
| -Operating Temperature | -40掳C ~ 85掳C |
