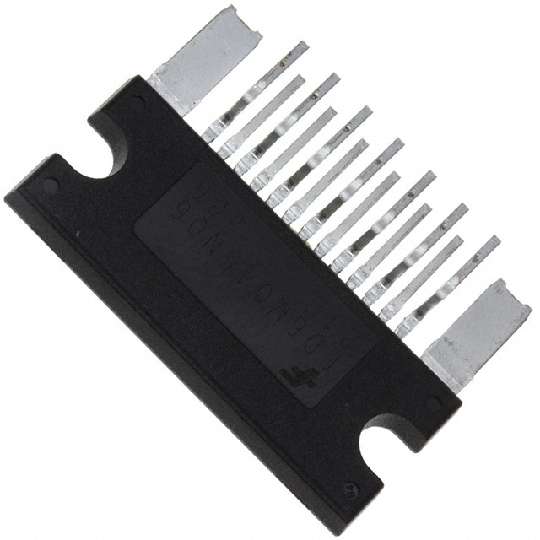

FD6M045N06

MOSFET 2N-CH 60V 60A EPM15

Manufacturer onsemi MPN FD6M045N06 SPQ 19 ECCN -- Schedule B -- RoHS -- Datasheet --

SP1027 Dollar $10.83063 RMB ￥89.9554 Stock type SP1027 Stock num 1409 Stepped num price 54+ $10.83063 100+ $10.28813 500+ $9.74563 1000+ $9.20313 10000+ $8.66063

Quote

Demand quantity		Target price
Contact number		name
company		email

Product parameter

-FET Feature	Standard
-Package / Case	EPM15
-Supplier Device Package	EPM15
-Standard Package	19
-Packaging	Tube
-Series	Power-SPM™
-Vgs(th) (Max) @ Id	4V @ 250µA
-Input Capacitance (Ciss) @ Vds	3890pF @ 25V
-Rds On (Max) @ Id, Vgs	4.5 mOhm @ 40A, 10V
-Drain to Source Voltage (Vdss)	60V
-Current - Continuous Drain (Id) @ 25°C	60A
-Gate Charge (Qg) @ Vgs	87nC @ 10V
-FET Type	2 N-Channel (Dual)
-Family	FETs - Modules
-Mounting Type	Through Hole
