| -Voltage - Isolation | 2500Vrms |
| -Voltage - Secondary (Full Load) | Parallel 12V, Series 24V |

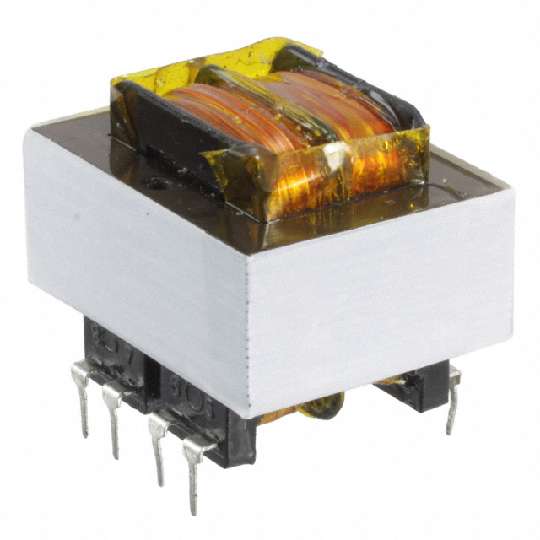

| -Type | Laminated Core |
| -Center Tap | No |
| -Termination Style | PC Pin |
| -Voltage - Primary | 115V |
| -Secondary Winding(s) | Dual |
| -Online Catalog | C2 Split Pack™ |
| -Family | Power Transformers |
| -Primary Winding(s) | Single |
| -Power - Max | 6 VA |
| -Current - Output (Max) | Parallel 500mA, Series 250mA |
| -Standard Package | 100 |
| -Size / Dimension | 41.28mm L x 33.32mm W |
| -Video File | Next-Gen UL Class 2/3 PC Mount Split PackTM Transformers |
| -Height - Seated (Max) | 33.32mm |
| -Series | C2 Split Pack™ |
| -Mounting Type | Through Hole |
