| -Vce Saturation (Max) @ Ib, Ic |
250mV @ 300µA, 10mA |

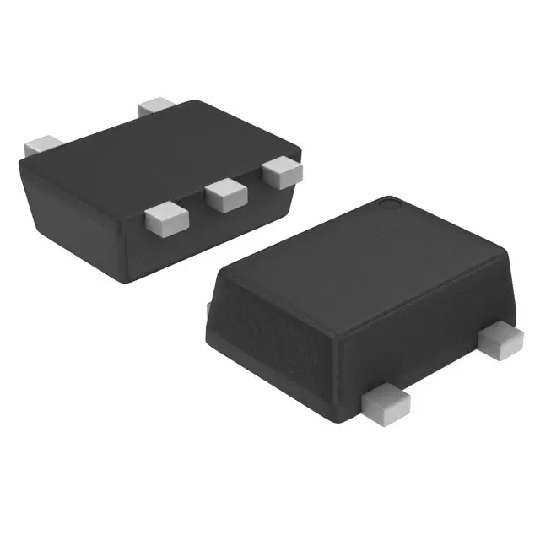

| -Package / Case |
SOT-553 |
| -Transistor Type |
1 NPN, 1 PNP - Pre-Biased (Dual) |
| -Resistor - Emitter Base (R2) (Ohms) |
22k |
| -Standard Package |
10 |
| -Packaging |
Cut Tape (CT) |
| -Family |
Transistors (BJT) - Arrays, Pre-Biased |
| -Current - Collector Cutoff (Max) |
500nA |
| -Resistor - Base (R1) (Ohms) |
22k |
| -Power - Max |
500mW |
| -PCN Obsolescence/ EOL |
Multiple Devices 30/Jun/2006 |
| -Supplier Device Package |
SOT-553 |
| -Current - Collector (Ic) (Max) |
100mA |
| -Voltage - Collector Emitter Breakdown (Max) |
50V |
| -Mounting Type |
Surface Mount |
| -DC Current Gain (hFE) (Min) @ Ic, Vce |
60 @ 5mA, 10V |
