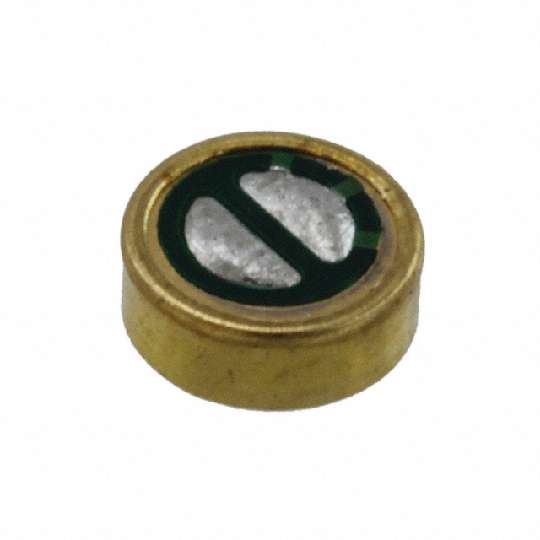

EM-4015-BC

MICROPHONE

Manufacturer Soberton, Inc. MPN EM-4015-BC SPQ 100 ECCN -- Schedule B -- RoHS -- Datasheet --

SP1027 Dollar $1.57744 RMB ￥13.10166 Stock type SP1027 Stock num 500 Stepped num price 100+ $1.57744 300+ $1.49513 500+ $1.46057

Quote

Demand quantity		Target price
Contact number		name
company		email

Product parameter

-Termination	Solder Pads
-Type	Electret Condenser
-S/N Ratio	58dB
-Direction	Omnidirectional
-Packaging	Tray
-Output Type	Analog
-Port Location	Top
-Series	EM
-Height (Max)	1.50mm
-Current - Supply	500µA
-Sensitivity	-44dB ±3dB @ 94dB SPL
-Seal Rating	None
-Standard Package	100
-Size / Dimension	4.00mm Dia
-Shape	Circular
-Voltage - Rated	2V
-Online Catalog	EM Series
-Family	Microphones
-Frequency Range	50Hz ~ 10kHz
