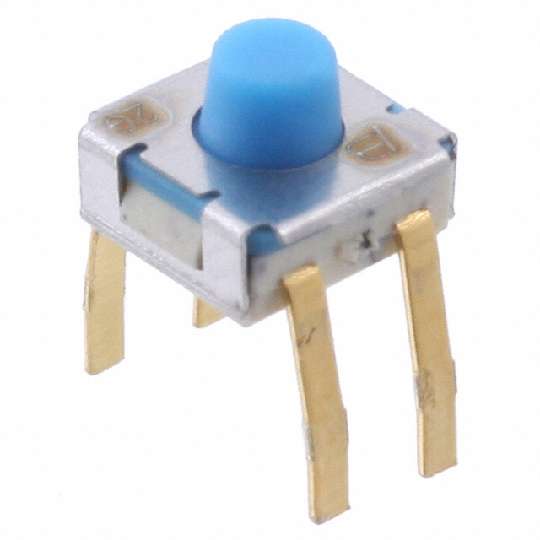

7914H-1-000

SWITCH TACTILE SPST-NO 0.1A 16V

Manufacturer Bourns, Inc. MPN 7914H-1-000 SPQ 1 ECCN -- Schedule B -- RoHS -- Datasheet 7914H-1-000.pdf

SP1027 Dollar $1.03168 RMB ￥8.56877 Stock type SP1027 Stock num 1000 Stepped num price 200+ $1.03168 600+ $0.97123 1000+ $0.90551 2600+ $0.8818 5000+ $0.84878 SP1038 Dollar $0.53686 RMB ￥4.45897 Stock type SP1038 Stock num 9 Stepped num price 1+ $0.53686

Quote

Demand quantity		Target price
Contact number		name
company		email

Product parameter

-Actuator Type	Standard
-Switch Function	Off-Mom
-Contact Rating @ Voltage	0.1A @ 16VAC/DC
-Termination Style	PC Pin
-Manufacturer	Bourns Inc.
-Illumination	Non-Illuminated
-Operating Force	300gf
-Family	Tactile Switches
-Mounting Type	Through Hole
-Packaging	Tube
-Circuit	SPST-NO
-Actuator Orientation	Top Actuated
-Actuator Height off PCB, from Pins	3.82mm
-Part Status	Active
-Category	Switches
-Series	7914
-Mechanical Life	100,000 Cycles
-Outline	5.00mm x 5.00mm
-Operating Temperature	-55°C ~ 125°C
-Actuator Material	Silicon Rubber
