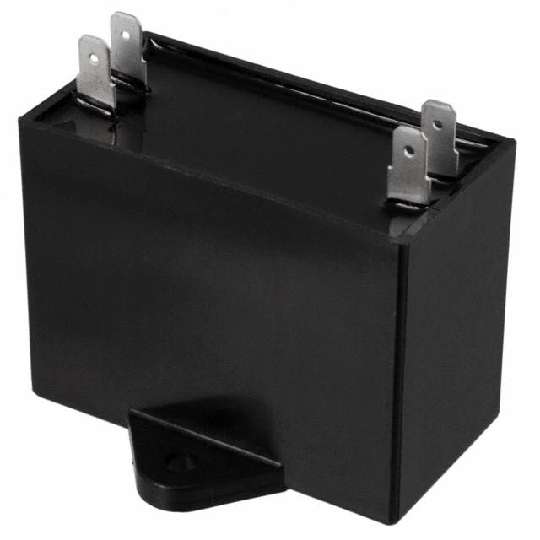

EEC2E406HQA416

CAP FILM 40UF 250VAC QC TERM

制造商 NICHICON CORPORATION 制造商零件编号 EEC2E406HQA416 标准包装 100 ECCN -- Schedule B -- RoHS -- 规格说明书 --

询价

需求数量		目标价格
联系电话		姓名
公司		邮箱

产品参数

-Termination	Quick Connect, Disconnect
-Package / Case	Rectangular Box
-Catalog Drawings	EC Series Top EC Series Side 1 EC Series Side 2
-Voltage Rating - AC	250V
-Size / Dimension	2.284" L x 1.181" W (58.00mm x 30.00mm)
-Online Catalog	EC Series
-Series	EC
-Applications	Motor Run
-Operating Temperature	-25°C ~ 85°C
-Tolerance	-5%, +10%
-Capacitance	40µF
-Standard Package	100
-Dielectric Material	Polypropylene (PP), Metallized
-Packaging	Bulk
-Height - Seated (Max)	1.772" (45.00mm)
-Family	Film Capacitors
-Mounting Type	Chassis Mount
