EE92251B3-000U-999

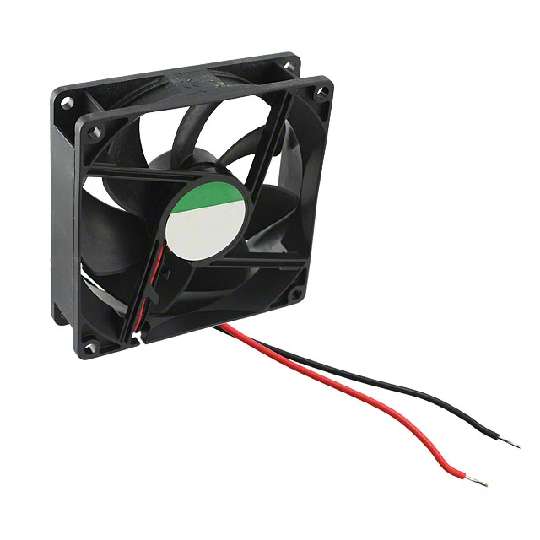

Fan: DC; axial; 12VDC; 90x90x25mm; 67.11m3/h; 28dBA; ball bearing

制造商 Sunonwealth Electric Machine Industry 制造商零件编号 EE92251B3-000U-999 标准包装 1 ECCN EAR99 Schedule B -- RoHS -- 规格说明书 --

SP1027库存 美元价格 $16.57911 人民币价格 ￥112.70639 库存类型 SP1027 库存数量 90 阶梯价格 数量 价格 10+ $16.57911 25+ $15.73545 60+ $14.85582

询价

需求数量		目标价格
联系电话		姓名
公司		邮箱

产品参数

-Size / Dimension	Square - 92mm L x 92mm H x 25mm W
-Material - Frame	Polybutylene Terephthalate (PBT)
-Weight	0.207 lb (93.89g)
-Power (Watts)	1.26W
-Fan Type	Tubeaxial
-Static Pressure	0.100 in H2O (24.9 Pa)
-Catalog Drawings	Axial Fan_25 92 x 92
-Voltage Range	4.5 ~ 13.8VDC
-Noise	28 dB(A)
-Family	DC Fans
-RoHS Information	RoHS Certificate
-Current Rating	0.105A
-Product Training Modules	DR MagLev Fan Series
-Air Flow	39.5 CFM (1.12m³/min)
-Life Expectancy	50000 hrs @ 25°C
-Bearing Type	Ball
-Termination	2 Wire Leads
-Material - Blade	Polybutylene Terephthalate (PBT)
-Standard Package	200
-Voltage - Rated	12VDC
-Series	DR MagLev®
-RPM	2400 RPM
-Operating Temperature	14 ~ 158°F (-10 ~ 70°C)
-ECCN	EAR99
