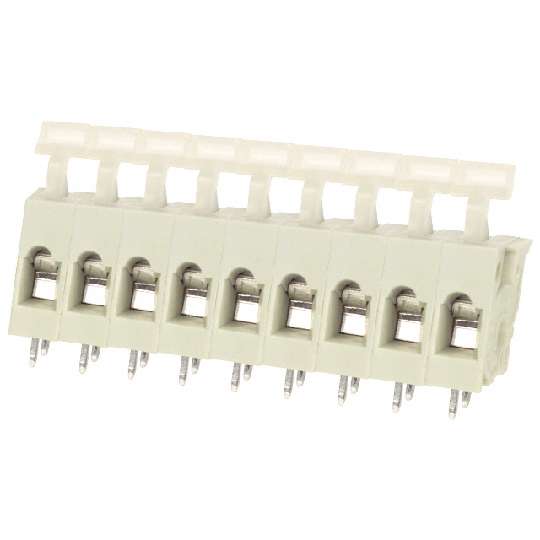

ED3101/9-WD

TERMINAL BLOCK 5MM 9POS PCB

Manufacturer On-Shore Technology, Inc. MPN ED3101/9-WD SPQ 50 ECCN -- Schedule B -- RoHS -- Datasheet --

Quote

Demand quantity		Target price
Contact number		name
company		email

Product parameter

-Number of Levels	1
-Housing Material	Polyamide (PA), Nylon
-Wire Gauge	14-28 AWG
-Current	16A
-Clamp Material - Plating	Steel, Stainless
-Standard Package	50
-Color	Gray, Slate
-Packaging	Bulk
-Family	Terminal Blocks - Wire to Board
-Pitch	0.197" (5.00mm)
-Mating Orientation	Horizontal with Board
-Voltage	300V
-Mounting Type	Through Hole
-Positions Per Level	9
-Catalog Drawings	ED3101 Front ED3101 Series Side
-Features	Interlocking (Side), Lever Actuated
-Wire Termination	Screwless - Leg Spring, Push-In Spring
-Series	ED3101/WD
-Operating Temperature	-30掳C ~ 105掳C
