| -Number of Levels |
1 |
| -Housing Material |
Polyamide (PA), Nylon |
| -Contact Material - Plating |
Copper |
| -Mounting Type |
Through Hole |
| -Positions Per Level |
11 |
| -Standard Package |
50 |
| -Color |
Gray, Slate |
| -Packaging |
Bulk |
| -Family |

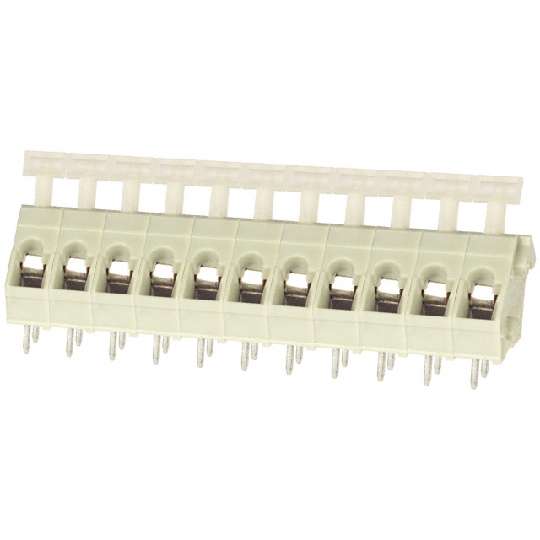

Terminal Blocks - Wire to Board |
| -Pitch |
0.197" (5.00mm) |
| -Mating Orientation |
45° (135°) Angle with Board |
| -Voltage |
300V |
| -Wire Gauge |
14-28 AWG |
| -Current |
16A |
| -Catalog Drawings |
ED3001 Front ED3001 Series Side |
| -Features |
Interlocking (Side), Lever Actuated |
| -Wire Termination |
Screwless - Leg Spring, Push-In Spring |
| -Series |
ED3001/KD |
| -Operating Temperature |
-30°C ~ 105°C |
