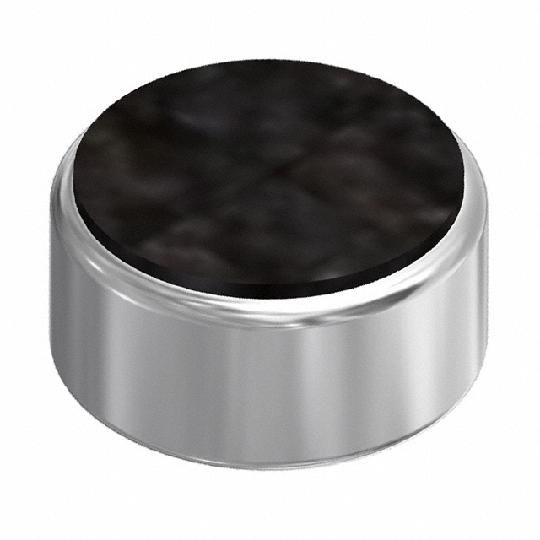

DUM-5246L

MIC COND ANALOG UNI -46DB

Manufacturer PUI Audio, Inc. MPN DUM-5246L SPQ 100 ECCN -- Schedule B -- RoHS -- Datasheet --

Quote

Demand quantity		Target price
Contact number		name
company		email

Product parameter

-Termination	Solder Pads
-Impedance	2.2 kOhm
-Seal Rating	None
-Standard Package	100
-Size / Dimension	8.00mm Dia
-Shape	Circular
-Voltage - Rated	2 ~ 10V
-Family	Microphones
-Current - Supply	500µA
-Sensitivity	-46dB ±3dB
-Type	Electret Condenser
-S/N Ratio	60dB
-Direction	Unidirectional
-Packaging	Bulk
-Output Type	Analog
-Port Location	Top
-Height (Max)	0.213" (5.40mm)
