| -Tolerance | ±25% |
| -Type | Toroidal |
| -Current - Saturation | 1.7A |
| -Height - Seated (Max) | 0.297" (7.55mm) |
| -Shielding | Unshielded |
| -Frequency - Test | 100kHz |
| -Catalog Drawings | UP1B, 2B, 3B, 4B Series Pin Out CTX01 Series |
| -Packaging | Tape & Reel (TR) |
| -Family | Fixed Inductors |
| -Current Rating | 2A |
| -Inductance | 120µH |

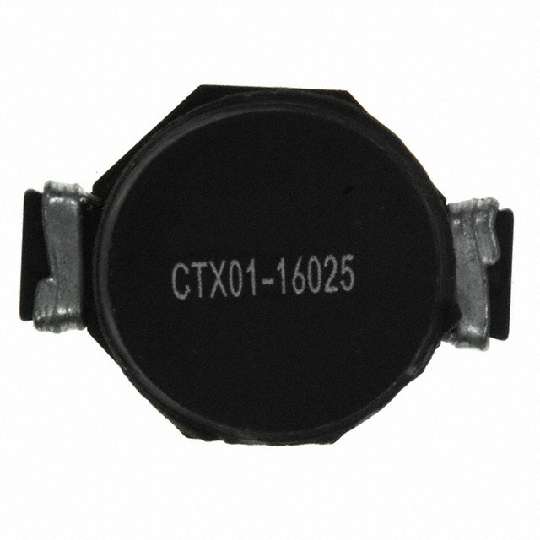

| -PCN Obsolescence/ EOL | CTX01-16025 11/May/2012 |
| -Size / Dimension | 0.697" L x 0.506" W (17.70mm x 12.85mm) |
| -Mounting Type | Surface Mount |
| -DC Resistance (DCR) | 62 mOhm Max |
| -Package / Case | Nonstandard |
| -Standard Package | 400 |
| -Material - Core | Powdered Iron |
| -Operating Temperature | -40°C ~ 150°C |
