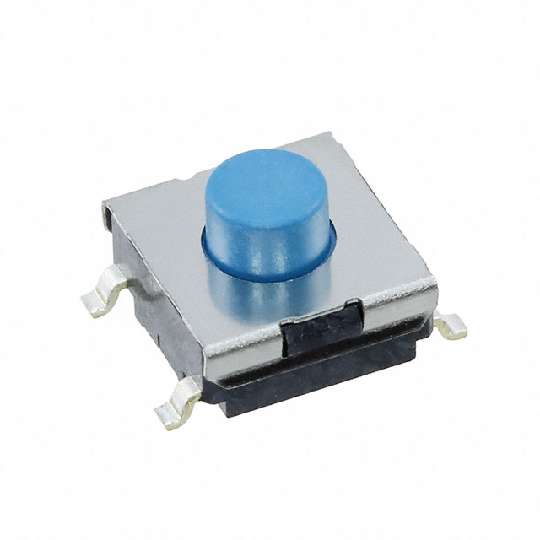

B3FS-1015

Microswitch TACT; SPST-NO; Pos: 2; 0.05A/24VDC; SMT; none; 2.55N

Manufacturer Omron MPN B3FS-1015 SPQ 1 ECCN -- Schedule B -- RoHS -- Datasheet --

SP1034 Dollar $0.63996 RMB ￥5.31528 Stock type SP1034 Stock num 30 Stepped num price 5+ $0.63996 125+ $0.62522 500+ $0.61799 SP1034 Dollar $0.62522 RMB ￥5.19286 Stock type SP1034 Stock num 610 Stepped num price 125+ $0.62522 500+ $0.61799

Quote

Demand quantity		Target price
Contact number		name
company		email

Product parameter

-Switch Function	Off-Mom
-Actuator Height off PCB, from Pins	4.30mm
-Other Related Documents	How to Read Date Codes
-Mounting Type	Surface Mount
-Actuator Type	Standard
-Standard Package	3,000
-Illumination	Non-Illuminated
-Mechanical Life	300,000 Cycles
-Family	Tactile Switches
-Operating Temperature	-25°C ~ 70°C
-Actuator Orientation	Top Actuated
-Termination Style	Gull Wing
-Operating Force	260gf
-Circuit	SPST-NO
-Contact Rating @ Voltage	0.05A @ 24VDC
-Packaging	Bulk
-Switch Travel	0.25mm
-Series	B3FS
-Outline	6.30mm x 6.00mm
