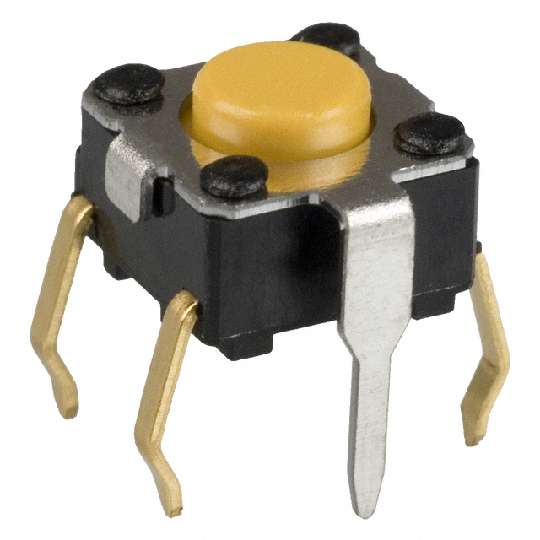

| -Switch Function | Off-Mom |
| -Actuator Height off PCB, from Pins | 4.30mm |
| -Other Related Documents | Tactile Switch Usage Guide How to Read Date Codes |
| -Mounting Type | Through Hole |
| -Actuator Type | Standard |
| -Catalog Drawings | B3F-1xxx Flat Footprint |
| -Features | Grounding Pin |
| -Packaging | Bulk |
| -Switch Travel | 0.25mm |
| -Mechanical Life | 300,000 Cycles |
| -Outline | 6.00mm x 6.00mm |
| -Actuator Orientation | Top Actuated |
| -Termination Style | PC Pin |
| -Operating Force | 150gf |
| -Circuit | SPST-NO |
| -Contact Rating @ Voltage | 0.05A @ 24VDC |
| -Standard Package | 1,500 |
| -PCN Design/Specification | B3F (6x6) Plunger June/2010 |
| -Illumination | Non-Illuminated |
| -Series | B3F |
| -Family | Tactile Switches |
| -Operating Temperature | -25掳C ~ 70掳C |
