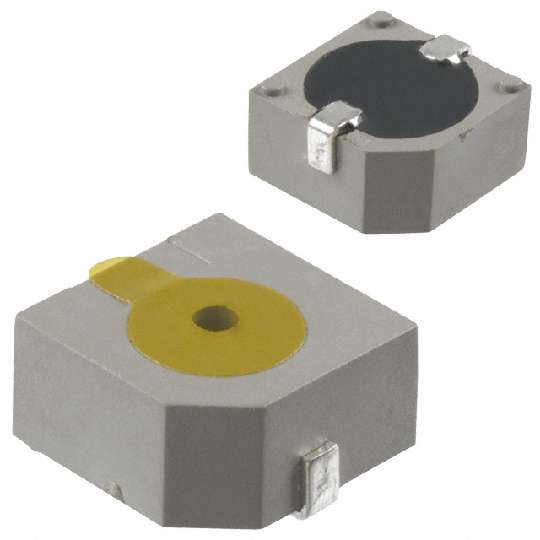

AST612Q

Magnetic Transducer External Drive 12.6 x 12.6 mm 12 V 87 dB 2.4 kHz Buzzer

Manufacturer Mallory Sonalert Products MPN AST612Q SPQ 51 ECCN EAR99 Schedule B -- RoHS -- Datasheet AST612Q.pdf

Quote

Demand quantity		Target price
Contact number		name
company		email

Product parameter

-Termination	Solder Pads
-Sound Pressure Level	87dB @ 12V, 10cm
-Voltage Range	8 ~ 16V
-Packaging	Tube
-Washable	Yes
-Family	Buzzers
-Mounting Type	Surface Mount
-Operating Temperature	-30°C ~ 85°C
-Technology	Magnetic
-Input Type	peak-peak Signal
-Kits	458-KIT-ND - BUZZER KIT SMD
-Standard Package	25
-Size / Dimension	Square - 12.60mm L x 12.60mm W x 7.20mm H
-Voltage - Rated	12Vp-p
-Series	AST
-Operating Mode	Continuous
-Frequency	2.4kHz
-Current - Supply	50mA
-Driver Circuitry	Transducer, Externally Driven
-ECCN	EAR99
