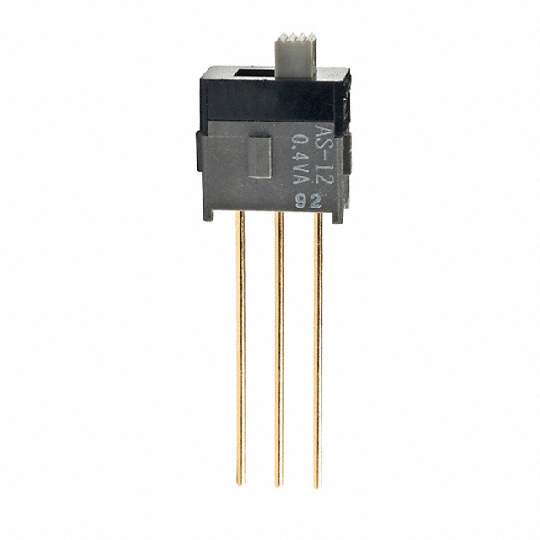

AS12AW

SWITCH SLIDE SPDT 0.4VA 28V

制造商 NKK Switches 制造商零件编号 AS12AW 标准包装 1 ECCN -- Schedule B -- RoHS -- 规格说明书 --

询价

需求数量		目标价格
联系电话		姓名
公司		邮箱

产品参数

-Switch Function	On-On
-Termination Style	Wire Wrap
-Product Training Modules	Switch Basics 3D CAD Models
-Operating Force	260gf
-Actuator Material	Polyamide (PA), Nylon, Glass Filled
-Actuator Type	Standard
-Voltage Rating - AC	28V
-Packaging	Bulk
-Switch Travel	2.50mm
-Series	AS
-Operating Temperature	-30°C ~ 85°C
-Contact Timing	Non-Shorting (BBM)
-Contact Finish	Gold
-Voltage Rating - DC	28V
-Electrical Life	50,000 Cycles
-Mounting Type	Through Hole
-Circuit	SPDT
-Actuator Length	2.50mm
-Features	Epoxy Sealed Terminals
-Contact Material	Phosphor Bronze
-Mechanical Life	50,000 Cycles
-Family	Slide Switches
-3D Model	AS12AW
-Current Rating	0.4VA (AC/DC)
