| -Current - Collector Pulsed (Icm) | 75A |
| -Power - Max | 357W |
| -IGBT Type | NPT |

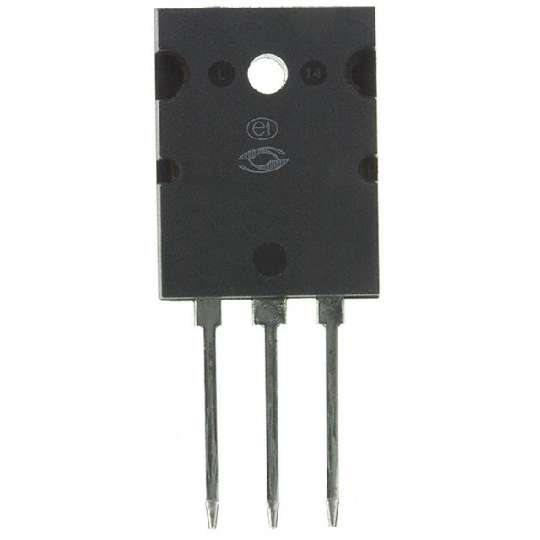

| -Catalog Drawings | TO-264 Front |
| -Td (on/off) @ 25°C | 14ns/185ns |
| -Current - Collector (Ic) (Max) | 64A |
| -Voltage - Collector Emitter Breakdown (Max) | 1200V |
| -Mounting Type | Through Hole |
| -Switching Energy | 1.315mJ (on), 1.515mJ (off) |
| -Package / Case | TO-264-3, TO-264AA |
| -Test Condition | 800V, 25A, 4.3 Ohm, 15V |
| -Supplier Device Package | TO-264 [L] |
| -Standard Package | 25 |
| -Packaging | Tube |
| -Gate Charge | 170nC |
| -Family | IGBTs - Single |
| -Vce(on) (Max) @ Vge, Ic | 3V @ 15V, 25A |
| -Input Type | Standard |
