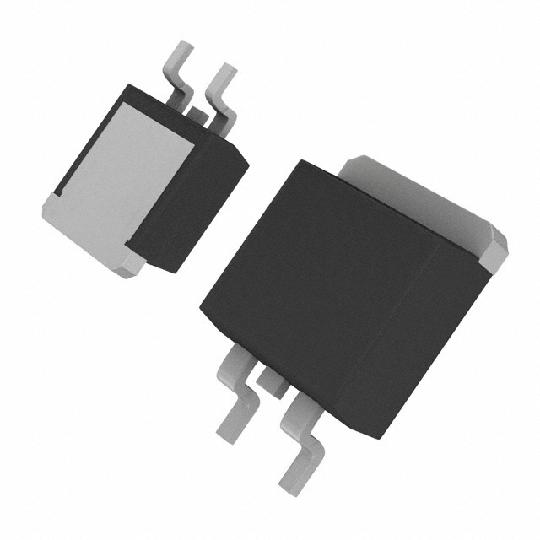

APT14M100S

MOSFET N-CH 1000V 14A D3PAK

Manufacturer Microchip Technology MPN APT14M100S SPQ 1 ECCN -- Schedule B -- RoHS -- Datasheet APT14M100S.pdf

Quote

Demand quantity		Target price
Contact number		name
company		email

Product parameter

-FET Feature	Standard
-Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
-Drain to Source Voltage (Vdss)	1000V (1kV)
-Current - Continuous Drain (Id) @ 25°C	14A (Tc)
-Gate Charge (Qg) @ Vgs	120nC @ 10V
-FET Type	MOSFET N-Channel, Metal Oxide
-Family	FETs - Single
-Mounting Type	Surface Mount
-Rds On (Max) @ Id, Vgs	880 mOhm @ 7A, 10V
-Power - Max	500W
-Supplier Device Package	D3Pak
-Standard Package	1
-Packaging	*
-Series	POWER MOS 8™
-Vgs(th) (Max) @ Id	5V @ 1mA
-Input Capacitance (Ciss) @ Vds	3965pF @ 25V
